CM6

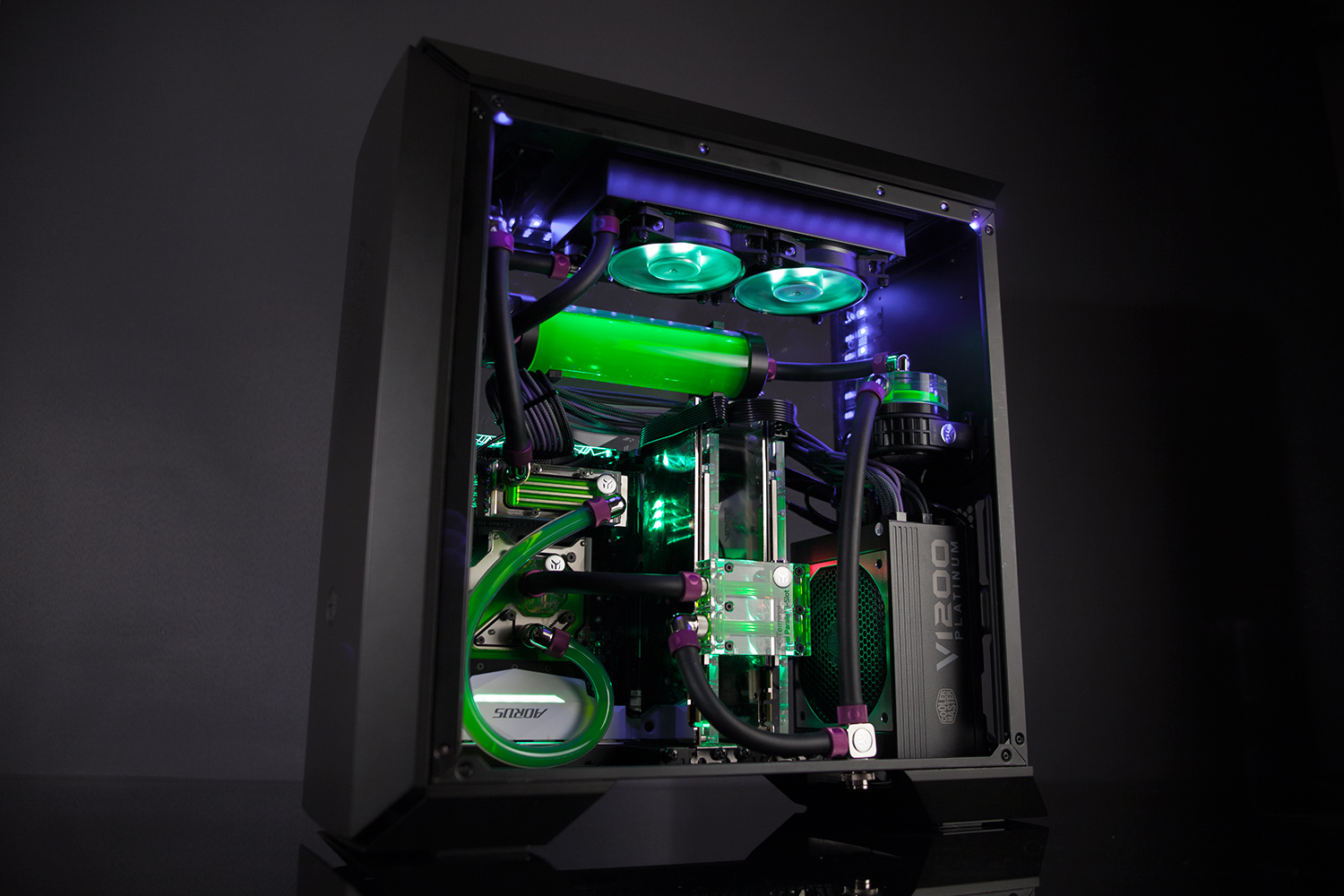

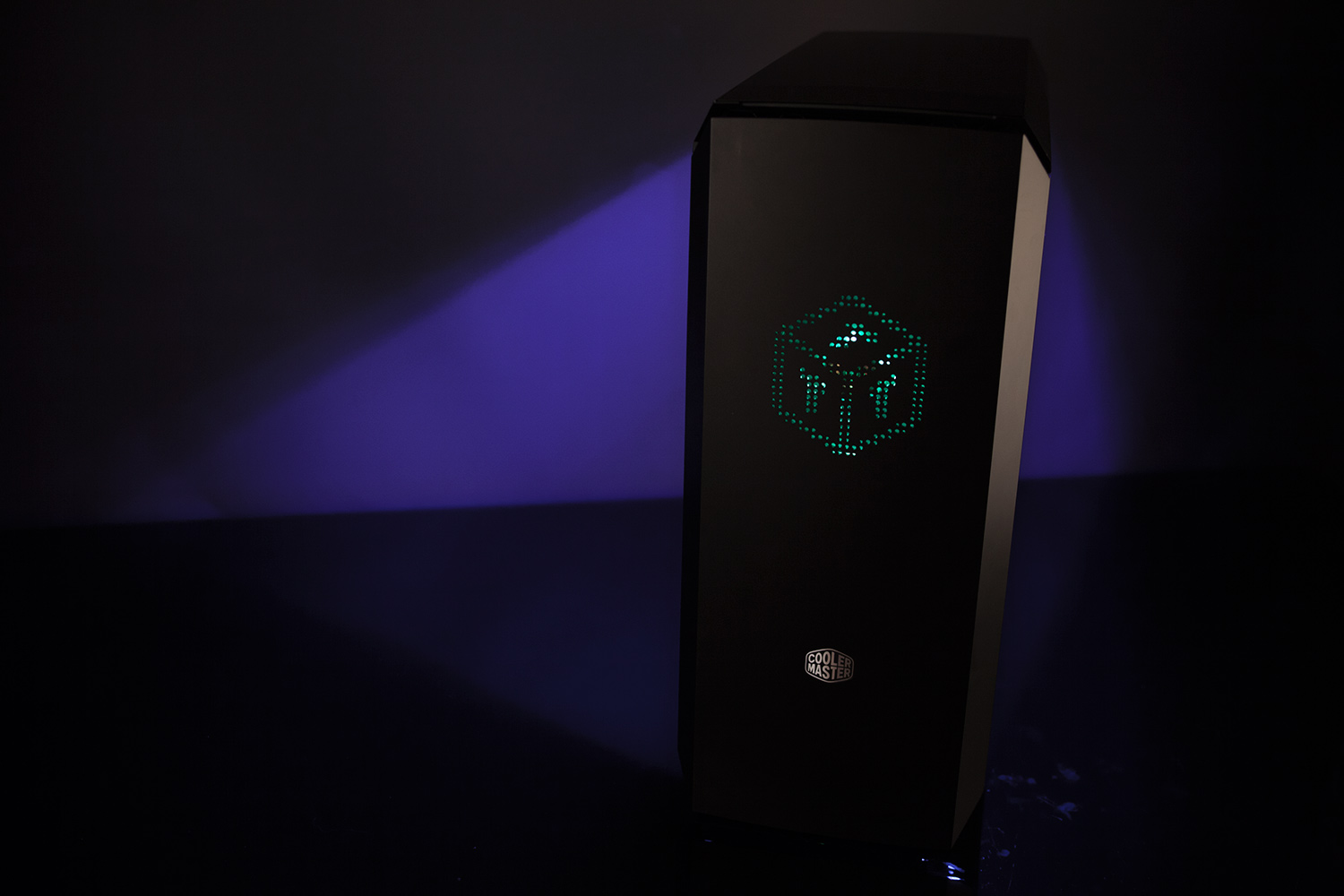

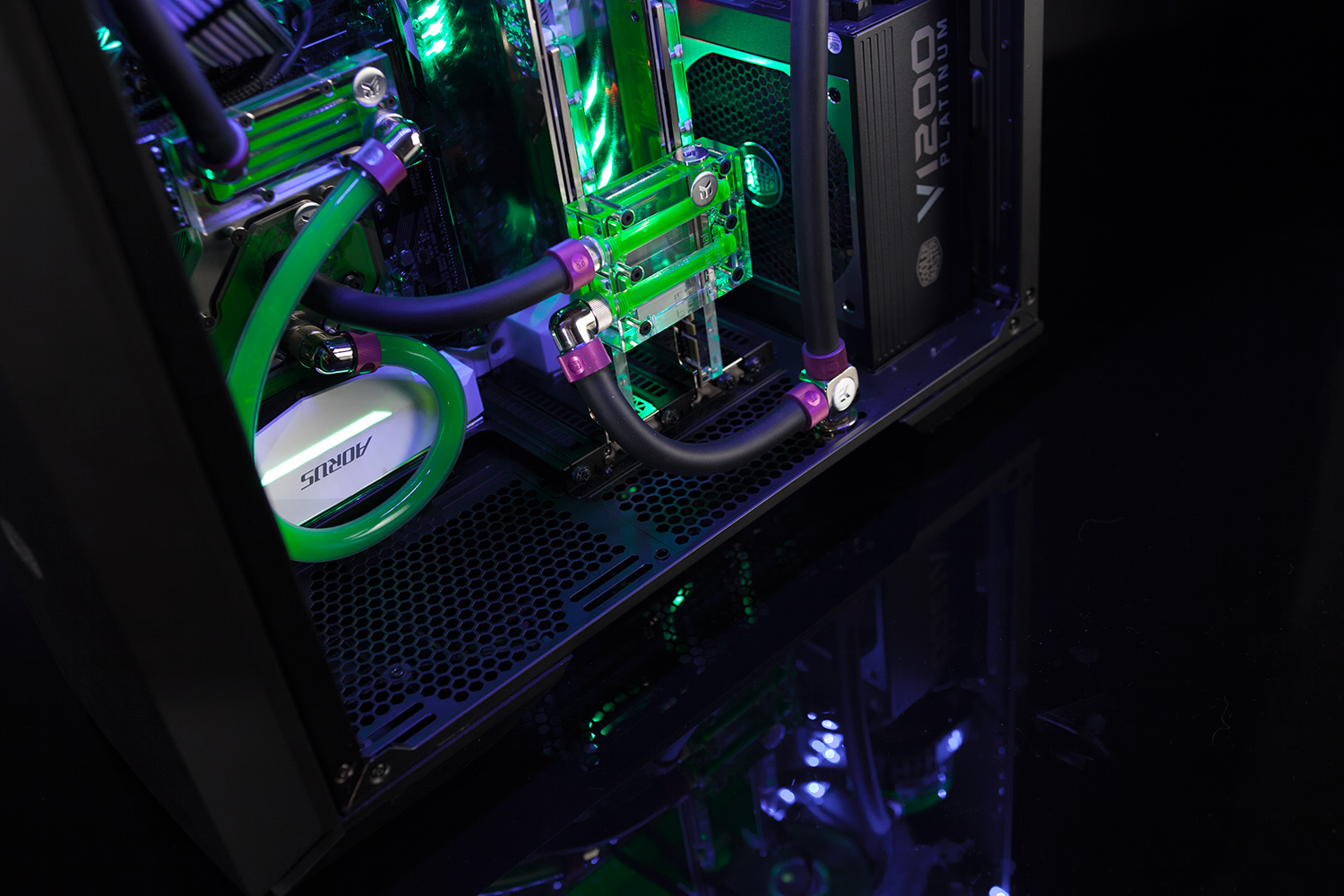

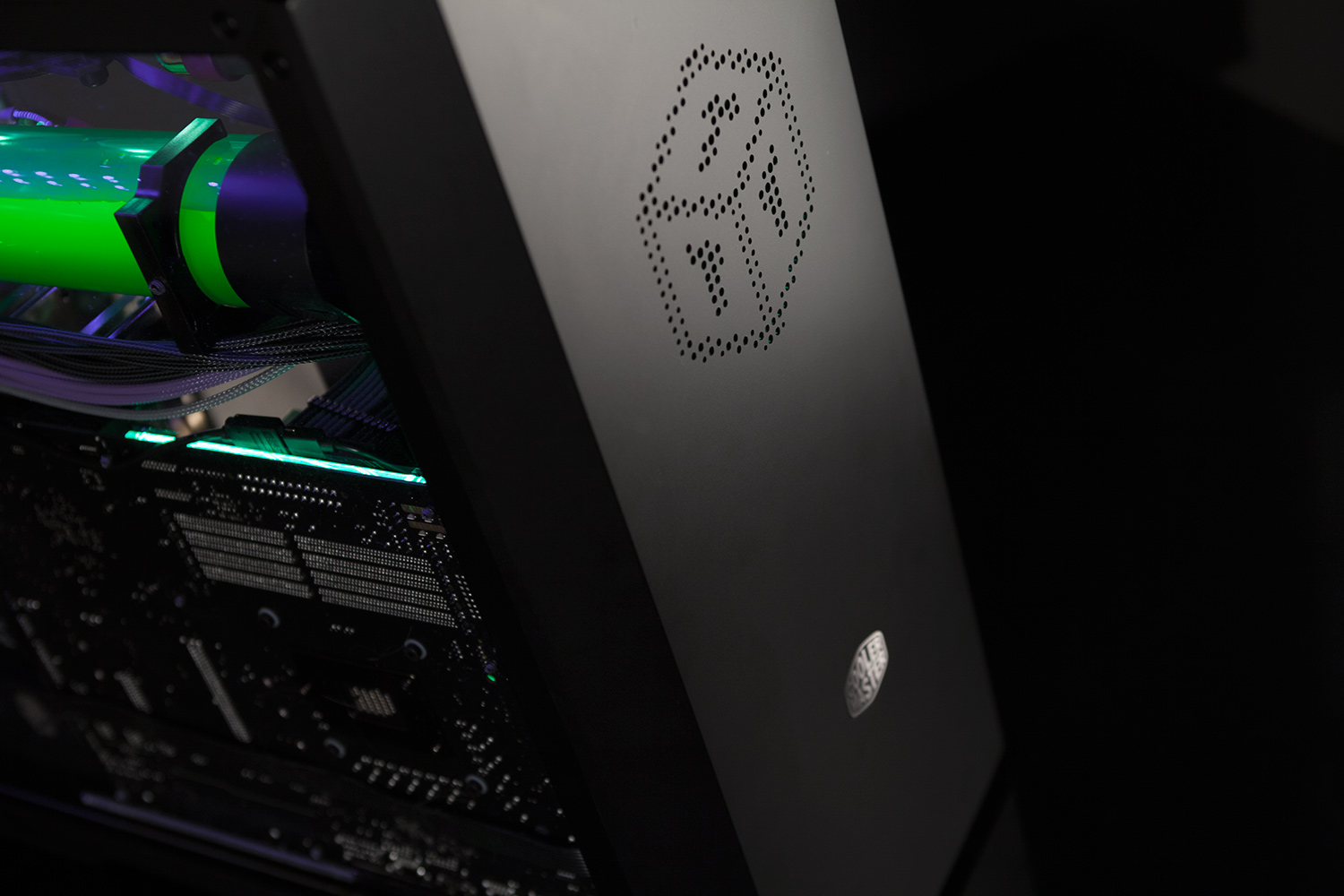

CM6 was built during Computex 2017 in Taiwan as a live modding project. I worked 4 days live at Cooler Master booth at Nangang Exhibition Center, surrounded by media, fans and modding friends from all over the world. My idea was to create a casemod with almost original exterior design but with a rotated motherboard layout. The mobo-tray is made out of acrylic which gives a see-through design and a floating horizontal reservoir.

Great thanks to Cooler Master who brought me to Taiwan for this project!

Hardware

Case Cooler Master Mastercase Pro 6
Motherboard Gigabyte AORUS 270X Gaming 7
CPU Intel Core i5 7600k
RAM 4x4GB (16GB) Crucial Ballistix Tactical DDR4
PSU Cooler Master V1200
GPU x2 Nvidia GTX1080 FE

Cooling

CPU EK Z270X RGB Monoblock
GPU x2 EK Full Cover 1080 Nickel/Acrylic
RAM EK Monarch x4 Nickel
RAM EK Monarch Module Nickel

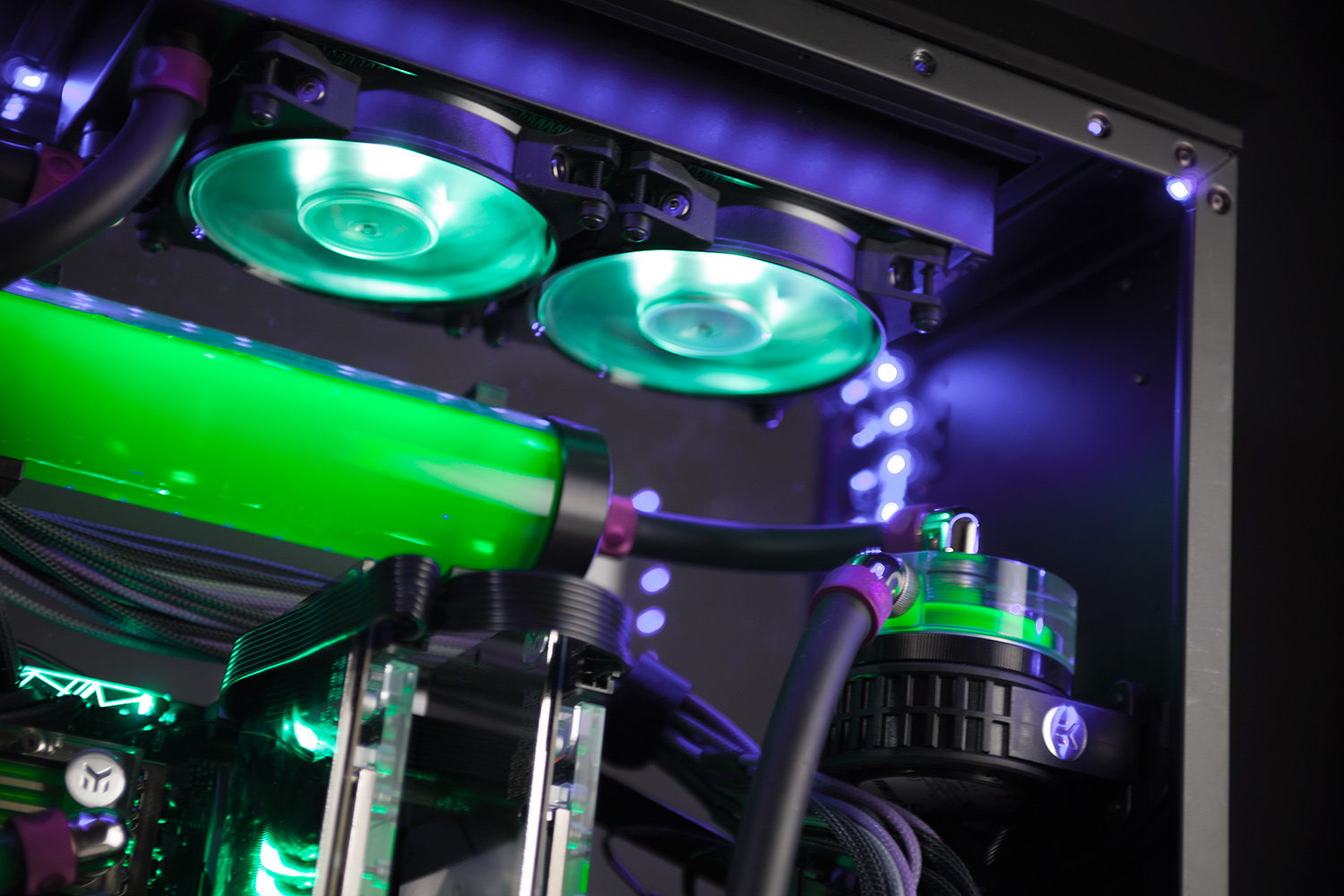

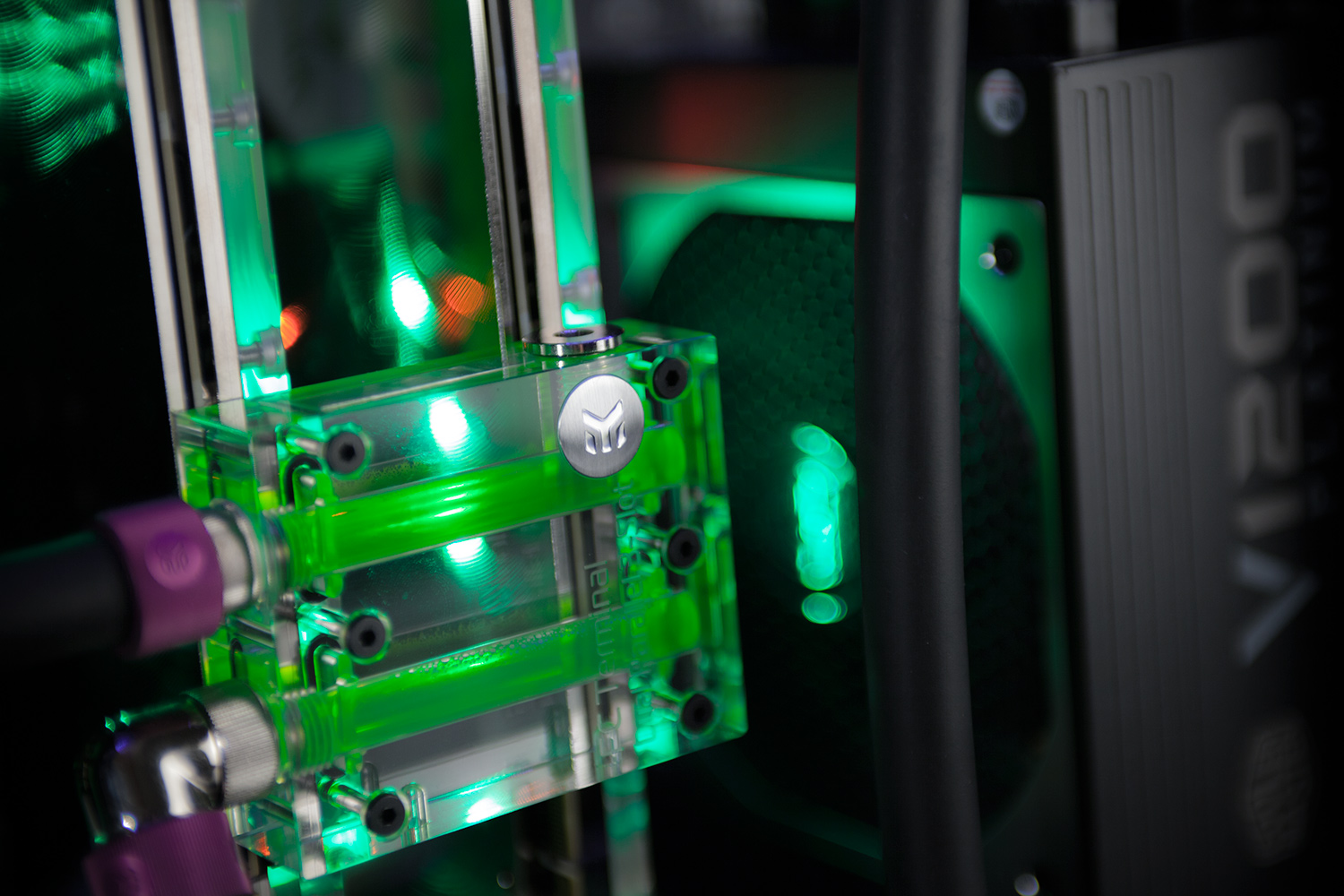

Res EK Res X3 250
Pump EK XTOP Revo D5
Radiator EK CoolStream XE 240
Radiator EK CoolStream SE 360
Fans x5 CM Masterfan Air B RGB 120 mm
Fittings & Tube EK DuraClear & ZMT Black 10/16
Fluid EK CryoFuel Acid Green
